Product Catalog
Item: 07-252-K01
Text Description:
Item: 07-252-K01
ATMOX ACE 2.0 Crawl Space Control Set
Item: 07-252-K01 The ATMOX ACE 2.0 Control Set is the intelligent crawl space moisture control system directing operation of components through dehumidification, ventilation, and circulation. The controller uses sensors to monitor conditions using measurements of temperature and humidity both inside the crawl space and outside. It uses this information to determine the best operation to improve the conditions in the crawlspace. Moisture will be reduced based on components installed and setup selected. The controller provides power to all ATMOX fans and lights from its internal power supply through the use of 12VDC wiring. The controller will also provide a notification on its display to monitor conditions in the crawl space providing constant data and alerts for any potential issues. ATMOX products have a 3-year limited product warranty. Box Contents: Display Controller Inside Temp/rH Sensor Outside Temp/rH Sensor Mounting Plate for Display Extension Cables Cable Couplers Quick Splice Connectors Wood screws for mounting Installation Guide
Specifications:
ATMOX ACE 2.0 Crawl Space Control Set
Item: 07-252-K01 The ATMOX ACE 2.0 Control Set is the intelligent crawl space moisture control system directing operation of components through dehumidification, ventilation, and circulation. The controller uses sensors to monitor conditions using measurements of temperature and humidity both inside the crawl space and outside. It uses this information to determine the best operation to improve the conditions in the crawlspace. Moisture will be reduced based on components installed and setup selected. The controller provides power to all ATMOX fans and lights from its internal power supply through the use of 12VDC wiring. The controller will also provide a notification on its display to monitor conditions in the crawl space providing constant data and alerts for any potential issues. ATMOX products have a 3-year limited product warranty. Box Contents: Display Controller Inside Temp/rH Sensor Outside Temp/rH Sensor Mounting Plate for Display Extension Cables Cable Couplers Quick Splice Connectors Wood screws for mounting Installation Guide
Specifications:
- Input: 120VAC 60Hz 1.25A
- Output: 12VDC 150WATTS MAX
- Environmental Conditions: Pollution Degree 2
- Data Input: 2 Temperature/Relative Humidity, 1 Wood Moisture, 1 Water Alert
- Power Output: 4 Switched, 1 Constant
Item: 07-262-K01
Text Description:
Item: 07-262-K01

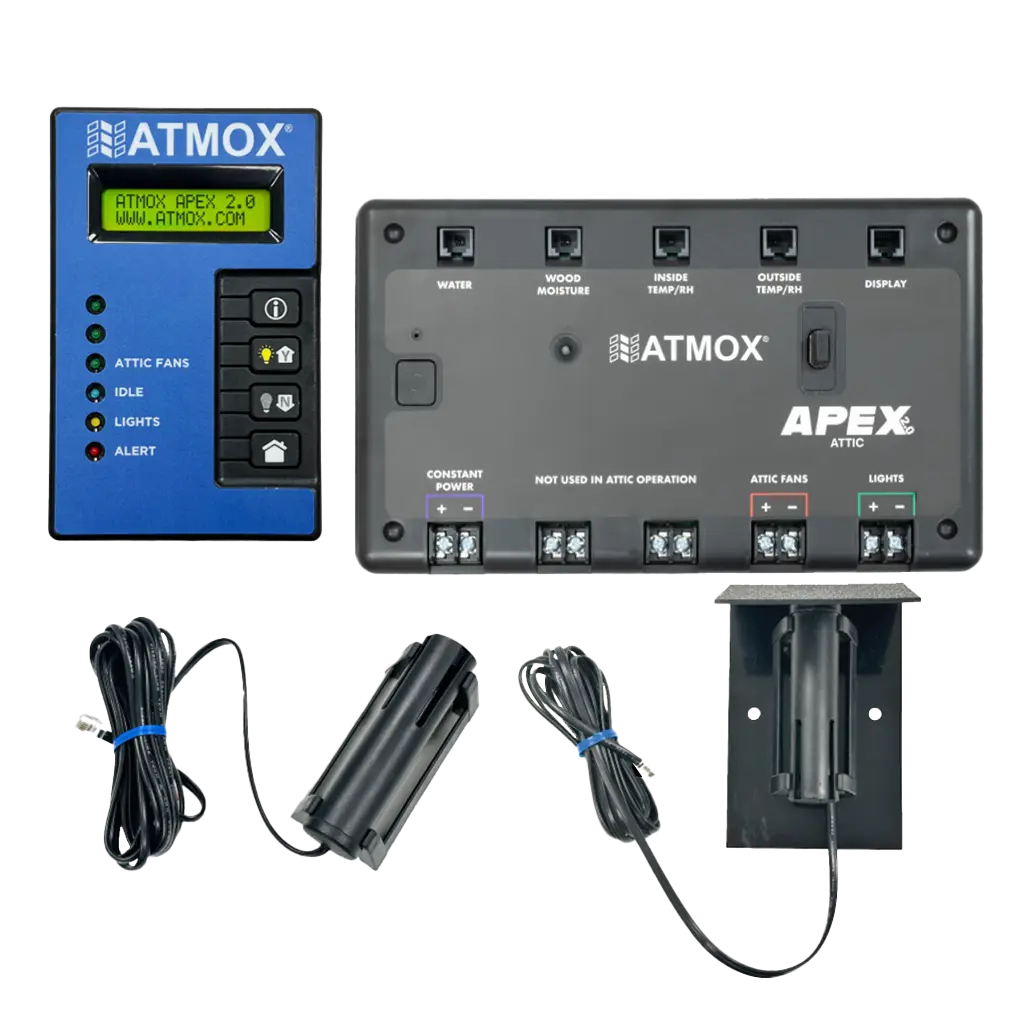

ATMOX APEX 2.0 Attic Control Set
Item: 07-262-K01 The ATMOX APEX 2.0 Control Set is the intelligent attic moisture control and heat reduction system directing operation of components for ventilation. The controller uses sensors to monitor conditions using measurements of temperature and humidity both inside the attic and outside. It uses this information to determine if ventilation will improve the conditions in the attic. The controller provides power to all ATMOX fans and lights from its internal power supply through the use of 12VDC wiring. The controller will also provide a notification on its display to monitor conditions in the attic providing constant data and alerts for any potential issues. ATMOX products have a 3-year limited product warranty. Box Contents: Display Controller Inside Temp/rH Sensor Outside Temp/rH Sensor Mounting Plate for Display Extension Cables Cable Couplers Quick Splice Connectors Wood screws for mounting Installation Guide
Specifications:
ATMOX APEX 2.0 Attic Control Set
Item: 07-262-K01 The ATMOX APEX 2.0 Control Set is the intelligent attic moisture control and heat reduction system directing operation of components for ventilation. The controller uses sensors to monitor conditions using measurements of temperature and humidity both inside the attic and outside. It uses this information to determine if ventilation will improve the conditions in the attic. The controller provides power to all ATMOX fans and lights from its internal power supply through the use of 12VDC wiring. The controller will also provide a notification on its display to monitor conditions in the attic providing constant data and alerts for any potential issues. ATMOX products have a 3-year limited product warranty. Box Contents: Display Controller Inside Temp/rH Sensor Outside Temp/rH Sensor Mounting Plate for Display Extension Cables Cable Couplers Quick Splice Connectors Wood screws for mounting Installation Guide
Specifications:
- Input: 120VAC 60Hz 1.25A
- Output: 12VDC 150WATTS MAX
- Environmental Conditions: Pollution Degree 2
- Data Input: 2 Temperature/Relative Humidity, 1 Wood Moisture, 1 Water Alert
- Power Output: 2 Switched, 1 Constant
Item: 02-175-400
Text Description:
Item: 02-175-400
ATMOX Dehumidifier Relay
Item: 02-175-400 The ATMOX Dehumidifier Relay allows an ATMOX crawl space controller to control the operation of a dehumidifier that has 24VAC terminal blocks. The relay connects to the controller and the dehumidifier allowing the ATMOX controller to command the operation of the dehumidifier. The dehumidifier will receive its power from a standard electrical outlet. Relay allows external control of select dehumidifiers by ATMOX Controller. Contact ATMOX for questions about compatibility. ATMOX products have a 3-year limited product warranty. Box Contents: Relay with Connector Cables Quick Splice Connectors Wood screws for mounting Spec Sheet
Specifications:
ATMOX Dehumidifier Relay
Item: 02-175-400 The ATMOX Dehumidifier Relay allows an ATMOX crawl space controller to control the operation of a dehumidifier that has 24VAC terminal blocks. The relay connects to the controller and the dehumidifier allowing the ATMOX controller to command the operation of the dehumidifier. The dehumidifier will receive its power from a standard electrical outlet. Relay allows external control of select dehumidifiers by ATMOX Controller. Contact ATMOX for questions about compatibility. ATMOX products have a 3-year limited product warranty. Box Contents: Relay with Connector Cables Quick Splice Connectors Wood screws for mounting Spec Sheet
Specifications:
- Use: Allows external control of select dehumidifiers by ATMOX Controller
- Input Voltage: 12 VDC
- Output Max Switching Voltage: 300VAC / 150VDC
- Output Max Switching Current: 2A
- Mounting: Mount internally to joist. Two screw holes for mounting
Item: 01-380-600L
Text Description:
Item: 01-380-600L
ATMOX Exhaust Fan – Multi-Mount – 225 CFM – Attic
Item: 01-380-600L The ATMOX 225 CFM Exhaust Fan is used for ventilation of the attic. The fan is designed to be mounted in several different ways such as underneath ridge vents or behind gables. The overall plate is 10 inches by 22 inches to accommodate rafters spaced up to 24 inches on center and can be trimmed for any tighter spaces between rafters or obstructions. Under the direction of the ATMOX attic controller, this exhaust fan will operate when outside conditions and an exchange of air are beneficial to the attic for purposes of moisture control or heat reduction. The plate is attached to the wall with a drill and screws or using wood blocks to attach to rafters. Screws are not included. The louver included in the box will generally not be attached in attic applications. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Louver with Screws Connector Wire Quick Splice Connectors Spec Sheet
Specifications:
ATMOX Exhaust Fan – Multi-Mount – 225 CFM – Attic
Item: 01-380-600L The ATMOX 225 CFM Exhaust Fan is used for ventilation of the attic. The fan is designed to be mounted in several different ways such as underneath ridge vents or behind gables. The overall plate is 10 inches by 22 inches to accommodate rafters spaced up to 24 inches on center and can be trimmed for any tighter spaces between rafters or obstructions. Under the direction of the ATMOX attic controller, this exhaust fan will operate when outside conditions and an exchange of air are beneficial to the attic for purposes of moisture control or heat reduction. The plate is attached to the wall with a drill and screws or using wood blocks to attach to rafters. Screws are not included. The louver included in the box will generally not be attached in attic applications. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Louver with Screws Connector Wire Quick Splice Connectors Spec Sheet
Specifications:
- Output: 225 CFM
- Nominal: 1.1A at 12V DC
- Usage: 15 Watts
- Noise: 49 dB
- Power: 2.1mm Jack (Center Negative)
- Mount: Plate (10 x 22 inches) mounts from inside crawl space/ attic
Use with supplied fan connector cable and quick splice connectors to connect to low voltage 12V DC wire to power from ATMOX controller. For use with standard electrical outlets, use AC Adapter (sold separately)
Item: 01-380-600L
Text Description:
Item: 01-380-600L
ATMOX Exhaust Fan – Multi-Mount with Louver – 225 CFM – Crawl Space
Item: 01-380-600L The ATMOX 225 CFM Exhaust Fan with Louver is used for ventilation of the crawl space. The fan is designed to mount directly behind an existing vent opening from inside the crawl space. The overall plate is 10 inches by 22 inches providing ample room to cover most vent sizes and can be trimmed for any tighter spaces between rafters or obstructions. When the louver is attached to the plate, it opens passively when fan is running and remains closed during other times keeping crawl space closed off from outside conditions. Under the direction of the ATMOX crawl space controller, this exhaust fan will operate when outside conditions and an exchange of air are beneficial to the crawl space. The plate is attached to the wall with a drill and screws or powder actuated nail gun. Screws are not included. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Louver with Screws Connector Wire Quick Splice Connectors Spec Sheet
Specifications:
ATMOX Exhaust Fan – Multi-Mount with Louver – 225 CFM – Crawl Space
Item: 01-380-600L The ATMOX 225 CFM Exhaust Fan with Louver is used for ventilation of the crawl space. The fan is designed to mount directly behind an existing vent opening from inside the crawl space. The overall plate is 10 inches by 22 inches providing ample room to cover most vent sizes and can be trimmed for any tighter spaces between rafters or obstructions. When the louver is attached to the plate, it opens passively when fan is running and remains closed during other times keeping crawl space closed off from outside conditions. Under the direction of the ATMOX crawl space controller, this exhaust fan will operate when outside conditions and an exchange of air are beneficial to the crawl space. The plate is attached to the wall with a drill and screws or powder actuated nail gun. Screws are not included. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Louver with Screws Connector Wire Quick Splice Connectors Spec Sheet
Specifications:
- Output: 225 CFM
- Nominal: 1.1A at 12V DC
- Usage: 15 Watts
- Noise: 49 dB
- Power: 2.1mm Jack (Center Negative)
- Mount: Plate (10 x 22 inches) mounts from inside crawl space/ attic
Use with supplied fan connector cable and quick splice connectors to connect to low voltage 12V DC wire to power from ATMOX controller. For use with standard electrical outlets, use AC Adapter (sold separately)
Item: 01-380-570L
Text Description:
Item: 01-380-570L
ATMOX Intake Fan – Multi-Mount with Louver – 225CFM
Item: 01-380-570L The ATMOX 225 CFM Intake Fan with Louver is used for ventilation of the crawl space. The fan is designed to mount directly behind an existing vent opening from inside the crawl space. The overall plate is 10 inches by 22 inches providing ample room to cover most vent sizes and can be trimmed for any tighter spaces between rafters or obstructions. The attached louver opens passively when fan is running and remains closed during other times keeping crawl space closed off from outside conditions. Under the direction of the ATMOX crawl space controller, this intake fan will operate when outside conditions and an exchange of air are beneficial to the crawl space. The plate is attached to the wall with a drill and screws or powder actuated nail gun. Screws are not included. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Connector Wire Quick Splice Connectors Spec Sheet
Specifications:
ATMOX Intake Fan – Multi-Mount with Louver – 225CFM
Item: 01-380-570L The ATMOX 225 CFM Intake Fan with Louver is used for ventilation of the crawl space. The fan is designed to mount directly behind an existing vent opening from inside the crawl space. The overall plate is 10 inches by 22 inches providing ample room to cover most vent sizes and can be trimmed for any tighter spaces between rafters or obstructions. The attached louver opens passively when fan is running and remains closed during other times keeping crawl space closed off from outside conditions. Under the direction of the ATMOX crawl space controller, this intake fan will operate when outside conditions and an exchange of air are beneficial to the crawl space. The plate is attached to the wall with a drill and screws or powder actuated nail gun. Screws are not included. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Connector Wire Quick Splice Connectors Spec Sheet
Specifications:
- Output: 225 CFM
- Nominal: 1.1A at 12V DC
- Usage: 15 Watts
- Noise: 49 dB
- Power: 2.1mm Jack (Center Negative)
- Mount: Plate (10 x 22 inches) mounts from inside crawl space
Use with supplied fan connector cable and quick splice connectors to connect to low voltage 12V DC wire to power from ATMOX controller. For use with standard electrical outlets, use AC Adapter (sold separately)
Item: 01-360-185
Text Description:
Item: 01-360-185
ATMOX Internal Fan – Joist Mount – 165 CFM
Item: 01-360-185 The ATMOX 165 CFM Joist-Mounted Internal Fan is used for circulation of air within the crawl space. The fan is designed to mount directly to a joist within the crawl space using its U-shaped hanging bracket. Under the direction of the ATMOX crawl space controller, this internal fan will circulate air when inside humidity is elevated. These fans assist the cross flow of ventilation, extend the reach of the dehumidifier, and work to balance temperature and humidity levels within the crawl space. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty.
Specifications:
ATMOX Internal Fan – Joist Mount – 165 CFM
Item: 01-360-185 The ATMOX 165 CFM Joist-Mounted Internal Fan is used for circulation of air within the crawl space. The fan is designed to mount directly to a joist within the crawl space using its U-shaped hanging bracket. Under the direction of the ATMOX crawl space controller, this internal fan will circulate air when inside humidity is elevated. These fans assist the cross flow of ventilation, extend the reach of the dehumidifier, and work to balance temperature and humidity levels within the crawl space. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty.
Specifications:
Box Contents:
- Fan
- Connector Wire
- Splice Connector
- Wood Screws for Mounting
- Spec Sheet
Item: 01-380-202
Text Description:
Item: 01-380-202
ATMOX Internal Fan – Joist Mount -225 CFM – Attic
The ATMOX 225 CFM Joist-Mounted Internal Fan is used for circulation of air within the crawl space or to enhance ventilation within the attic. The fan is designed to mount directly to a joist within the crawl space or attic using its U-shaped hanging bracket. This internal fan is frequently used in conjunction with ducting to force air to or from hard-to-reach areas. 8 inch ducting can be attached to one or both sides of the fan housing. Under the direction of the ATMOX crawl space controller, this internal fan will circulate air when inside humidity is elevated. These fans assist the cross flow of ventilation, extend the reach of the dehumidifier, and work to balance temperature and humidity levels within the crawl space. Under the direction of the ATMOX attic controller, this internal fan will assist ventilation of attic fans. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Connector Wire Quick Splice Connectors Wood Screws for Mounting Spec Sheet
Specifications:
ATMOX Internal Fan – Joist Mount -225 CFM – Attic
The ATMOX 225 CFM Joist-Mounted Internal Fan is used for circulation of air within the crawl space or to enhance ventilation within the attic. The fan is designed to mount directly to a joist within the crawl space or attic using its U-shaped hanging bracket. This internal fan is frequently used in conjunction with ducting to force air to or from hard-to-reach areas. 8 inch ducting can be attached to one or both sides of the fan housing. Under the direction of the ATMOX crawl space controller, this internal fan will circulate air when inside humidity is elevated. These fans assist the cross flow of ventilation, extend the reach of the dehumidifier, and work to balance temperature and humidity levels within the crawl space. Under the direction of the ATMOX attic controller, this internal fan will assist ventilation of attic fans. Fans are powered through low voltage wiring when connected to an ATMOX controller. For use in a standard electrical outlet, the fan will require a 12V AC adapter (sold separately). ATMOX products have a 3-year limited product warranty. Box Contents: Fan Connector Wire Quick Splice Connectors Wood Screws for Mounting Spec Sheet
Specifications:
- Output: 225 CFM
- Nominal: 1.1A at 12V DC
- Usage: 15 Watts
- Noise: 49 dB
- Power: 2.1mm Jack (Center Negative)
- Mount: Use U-Bracket to mount to joist
Use with supplied fan connector wire and quick splice connectors to connect to low voltage 12V DC wire to power from ATMOX controller. For use with standard electrical outlets, use AC Adapter (sold separately)
Item: 01-290-400-5pk
Text Description:
Item: 01-290-400-5pk
ATMOX Internal Mount Solid Plates – 5 pack
Item: 01-290-400-5pk The ATMOX Crawl Space Vent Cover mounts from inside the crawl space behind an opening. The covers keep air flow blocked from the outside. The overall plate is 10 inches by 22 inches providing ample room to cover most vent sizes and can be trimmed for any tighter spaces between rafters or obstructions. The plate is attached to the wall with a drill and screws or powder actuated nail gun. Screws are not included. Vent covers are sold as a pack of five. ATMOX products have a 3-year limited product warranty.
Specifications:
ATMOX Internal Mount Solid Plates – 5 pack
Item: 01-290-400-5pk The ATMOX Crawl Space Vent Cover mounts from inside the crawl space behind an opening. The covers keep air flow blocked from the outside. The overall plate is 10 inches by 22 inches providing ample room to cover most vent sizes and can be trimmed for any tighter spaces between rafters or obstructions. The plate is attached to the wall with a drill and screws or powder actuated nail gun. Screws are not included. Vent covers are sold as a pack of five. ATMOX products have a 3-year limited product warranty.
Specifications:
- Size: 22 inches by 10 inches
- Mounting: Plate mounts from inside crawl space behind existing vent opening
Item: 02-600-300
Text Description:
Item: 02-600-300
ATMOX LED String Light
Item: 02-600-300 The ATMOX LED String Light provides bright, energy-efficient lighting for crawl spaces or attics. Each set includes 8 LED strips producing a total of 1440 lumens while using just 12 watts of power. When connected to an ATMOX Controller, the lights operate on low-voltage wiring and can be turned on or off directly from the controller display. ATMOX products have a 3-year limited product warranty.
Specifications:
ATMOX LED String Light
Item: 02-600-300 The ATMOX LED String Light provides bright, energy-efficient lighting for crawl spaces or attics. Each set includes 8 LED strips producing a total of 1440 lumens while using just 12 watts of power. When connected to an ATMOX Controller, the lights operate on low-voltage wiring and can be turned on or off directly from the controller display. ATMOX products have a 3-year limited product warranty.
Specifications:
- Output: 1440 lumens
- Color Temperature: 6500K
- Lights: 8 LED strips
- Power Usage: 12 Watts (1.0A at 12V DC)
- Power Connector: 2.1mm Jack (Center Negative)
- Length: 50 feet
- Mount: Use (8) small screws to attach light strips to joist and use wire staples (25) to attach wires
Item: 03-200-100
Text Description:
Item: 03-200-100

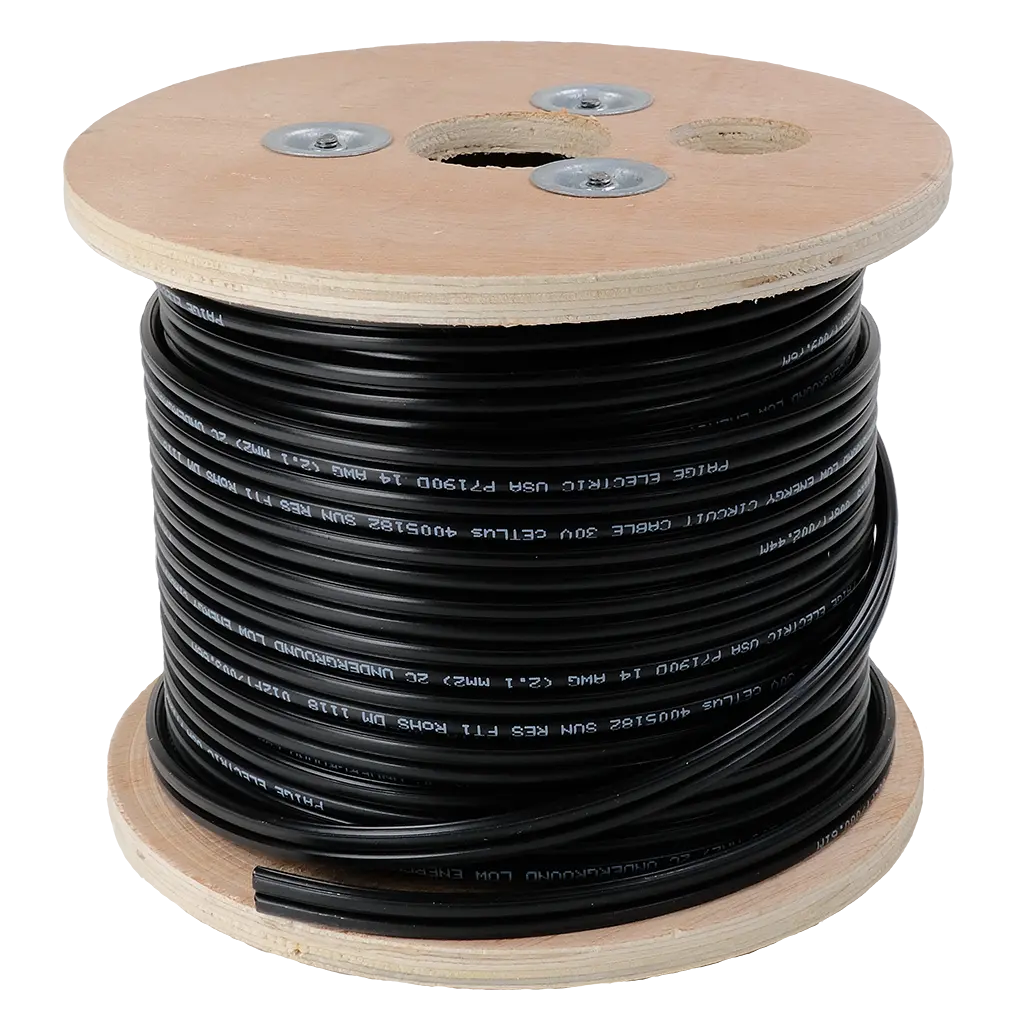

ATMOX Low Voltage Wire
Item: 03-200-100 This 14/2 gauge low voltage wire is used to connect and power ATMOX 12VDC fans and/or lights to the ATMOX controllers for crawl spaces or attics. Each wire spool is 100 feet. Multiple wires or sections can easily connect together to reach the distance of fans or lights being installed.
Specifications:
ATMOX Low Voltage Wire
Item: 03-200-100 This 14/2 gauge low voltage wire is used to connect and power ATMOX 12VDC fans and/or lights to the ATMOX controllers for crawl spaces or attics. Each wire spool is 100 feet. Multiple wires or sections can easily connect together to reach the distance of fans or lights being installed.
Specifications:
- Gauge: 14/2 gauge low voltage wire
- Length: 100 ft
Item: 01-175-032
Text Description:
Item: 01-175-032

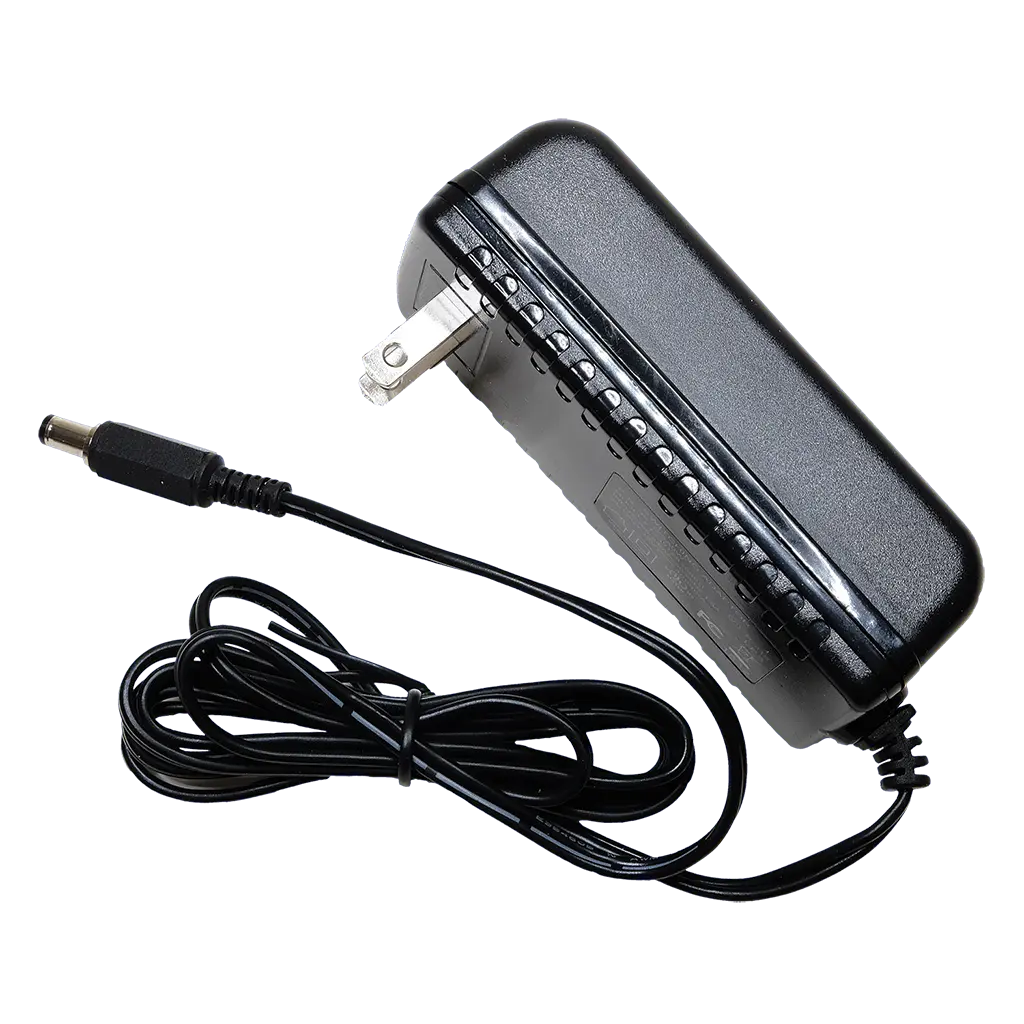

ATMOX Power – AC Adapter for Fan-Light
Item: 01-175-032 The AC Power Adapter is used to provide power to an ATMOX 12VDC Fan or Light when not used with the ATMOX Controller. The adapter plugs into a standard electrical outlet for power. The other side connects to the jack on the fan or light. Once plugged in, the fan or light will run continuously unless put on some type of controls.
Specifications:
ATMOX Power – AC Adapter for Fan-Light
Item: 01-175-032 The AC Power Adapter is used to provide power to an ATMOX 12VDC Fan or Light when not used with the ATMOX Controller. The adapter plugs into a standard electrical outlet for power. The other side connects to the jack on the fan or light. Once plugged in, the fan or light will run continuously unless put on some type of controls.
Specifications:
- Use: Standard electrical outlet
- Output Voltage: 12.0V DC, 2.0A
- Input Voltage:: 100-240V AC
- Connection: 2.1mm (Center Negative)
Item: 01-550-650
Text Description:
Item: 01-550-650
ATMOX Sensor – Inside-Outside V2
Item: 01-550-650 The ATMOX v2 Temperature/Humidity Sensor is for replacement only. This type of sensor is required with an ATMOX Controller. All control sets include these required sensors. This sensor can be used to replace an inside sensor or an outside sensor if the hood cover is still in place. This is the newer v2 version of the Inside Sensor. Some older ATMOX systems will not be compatible with this version. Request more information for questions on software compatibility. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor Cradle for Mounting Wood Screws for Mounting Cable Coupler Spec Sheet
Specifications:
ATMOX Sensor – Inside-Outside V2
Item: 01-550-650 The ATMOX v2 Temperature/Humidity Sensor is for replacement only. This type of sensor is required with an ATMOX Controller. All control sets include these required sensors. This sensor can be used to replace an inside sensor or an outside sensor if the hood cover is still in place. This is the newer v2 version of the Inside Sensor. Some older ATMOX systems will not be compatible with this version. Request more information for questions on software compatibility. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor Cradle for Mounting Wood Screws for Mounting Cable Coupler Spec Sheet
Specifications:
- Connection: RJ11 Jack with 10’ RJ11 Cable Includes one coupler
- Mounting: Includes bracket. Two holes for screws for mounting
Item: 01-550-651
Text Description:
Item: 01-550-651
ATMOX Sensor – Outside with Hood V2
Item: 01-550-651 The ATMOX v2 Temperature/Humidity Sensor is for replacement only. This type of sensor is required with an ATMOX Controller. All control sets include these required sensors. This outside sensor includes the hood cover. This is the newer v2 version of the Inside Sensor. Some older ATMOX systems will not be compatible with this version. Request more information for questions on software compatibility. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor with Hood Cover Wood Screws for Mounting Cable Coupler Spec Sheet
Specifications:
ATMOX Sensor – Outside with Hood V2
Item: 01-550-651 The ATMOX v2 Temperature/Humidity Sensor is for replacement only. This type of sensor is required with an ATMOX Controller. All control sets include these required sensors. This outside sensor includes the hood cover. This is the newer v2 version of the Inside Sensor. Some older ATMOX systems will not be compatible with this version. Request more information for questions on software compatibility. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor with Hood Cover Wood Screws for Mounting Cable Coupler Spec Sheet
Specifications:
- Connection: RJ11 Jack with 10’ RJ11 Cable Includes one coupler
- Mounting: Includes outside hood with mounting bracket. Two screw holes for mounting
Item: 01-500-300
Text Description:
Item: 01-500-300
ATMOX Sensor – Water Alert
Item: 01-500-300 The ATMOX Water Alert Sensor works with an ATMOX controller to provide a notification of a potential water issue in the location of the sensor. It is typically placed by a sump pump or condensate line that could have an issue creating a water backup. The sensor will display an alert notification on the ATMOX controller to let a homeowner know about a potential problem. The sensor cannot be used without an ATMOX controller. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor Extension Cables Cable Couplers Spec Sheet
Specifications:
ATMOX Sensor – Water Alert
Item: 01-500-300 The ATMOX Water Alert Sensor works with an ATMOX controller to provide a notification of a potential water issue in the location of the sensor. It is typically placed by a sump pump or condensate line that could have an issue creating a water backup. The sensor will display an alert notification on the ATMOX controller to let a homeowner know about a potential problem. The sensor cannot be used without an ATMOX controller. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor Extension Cables Cable Couplers Spec Sheet
Specifications:
- Connection: RJ11 Jack with 6’ RJ11 Cable Includes Two Extension Cables (25’) with Couplers
- Placement: Place in potential water backup locations. Use cable ties if desired.
Item: 01-500-200
Text Description:
Item: 01-500-200
ATMOX Sensor – Wood Moisture
Item: 01-500-200 This ATMOX Wood Moisture Sensor works with an ATMOX controller to provide information on corresponding wood moisture content in the wood of the crawl space or attic. This information is shown on the controller display and can trigger an alert if wood moisture content is too high. The sensor can be mounted directly to a joist using screw holes. The sensor cannot be used without an ATMOX controller. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor Extension Cables Cable Couplers Wood Screws for Mounting Spec Sheet
Specifications:
ATMOX Sensor – Wood Moisture
Item: 01-500-200 This ATMOX Wood Moisture Sensor works with an ATMOX controller to provide information on corresponding wood moisture content in the wood of the crawl space or attic. This information is shown on the controller display and can trigger an alert if wood moisture content is too high. The sensor can be mounted directly to a joist using screw holes. The sensor cannot be used without an ATMOX controller. ATMOX products have a 3-year limited product warranty. Box Contents: Sensor Extension Cables Cable Couplers Wood Screws for Mounting Spec Sheet
Specifications:
- Connection: RJ11 Jack with 6’ RJ11 Cable Includes Two Extension Cables (25’) with Couplers
- Operating Range: 6.2% to 25.0%
- Mounting: Mount internally to joist Two holes for screws for mounting
Item: 03-200-900
Text Description:
Item: 03-200-900
ATMOX Supplies Kit – Low Voltage Wiring
Item: 03-200-900 This kit provides spare parts for installing ATMOX components such as fans or lights. These parts are generally included with components, but extra quick splice connectors may be necessary in a very large space or unusual setup. Extra wire connectors would be for spare parts or if mistakes are made during an installation.
Specifications:
ATMOX Supplies Kit – Low Voltage Wiring
Item: 03-200-900 This kit provides spare parts for installing ATMOX components such as fans or lights. These parts are generally included with components, but extra quick splice connectors may be necessary in a very large space or unusual setup. Extra wire connectors would be for spare parts or if mistakes are made during an installation.
Specifications:
Kit includes:
- (4) Fan Connector Wires
- (18) Quick Splice Connectors
Item: 03-200-910
Text Description:
Item: 03-200-910
ATMOX Supplies Kit – Low Voltage Wiring – Blue/Black
Item: 03-200-910 This kit provides spare parts for installing select ATMOX components such as fans or lights. These parts are generally included with components, but extra splice connectors may be necessary in a very large space or unusual setup. Extra wire connectors would be for spare parts or if mistakes are made during an installation.
Specifications:
ATMOX Supplies Kit – Low Voltage Wiring – Blue/Black
Item: 03-200-910 This kit provides spare parts for installing select ATMOX components such as fans or lights. These parts are generally included with components, but extra splice connectors may be necessary in a very large space or unusual setup. Extra wire connectors would be for spare parts or if mistakes are made during an installation.
Specifications:
Kit Includes:
- (4) Connector Wires (6 ft)
- (9) Splice Connectors
Item: 01-550-900
Text Description:
Item: 01-550-900

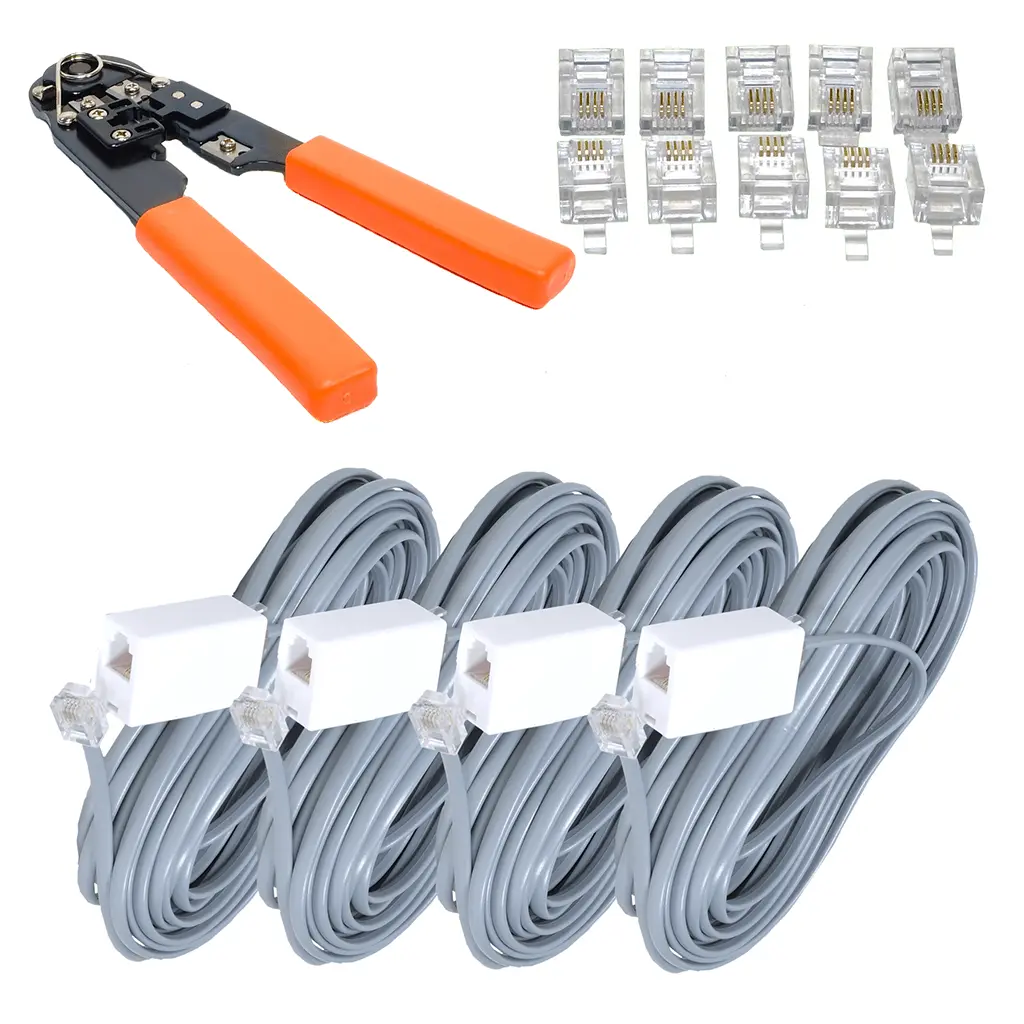

ATMOX Supplies Kit – Sensor Cables
Item: 01-550-900 The ATMOX Sensor Cable Supplies Kit provides spare parts for installing or replacing sensors for ATMOX controllers. The cables and couplers are included with new controllers. These parts may be necessary in very large spaces or if any repairs or replacements are being done on sensors or on the connection between the display and controller. Crimping tool and jacks used to change any damaged sensor jacks. Replacement sensors can be purchased separately. ATMOX products have a 3-year limited product warranty. Contents: (1) Crimping Tool for RJ11 Jacks (4) Extension Cables (4) Cable Couplers (100) RJ11 Plugs for Stranded Flat Wire
Specifications:
ATMOX Supplies Kit – Sensor Cables
Item: 01-550-900 The ATMOX Sensor Cable Supplies Kit provides spare parts for installing or replacing sensors for ATMOX controllers. The cables and couplers are included with new controllers. These parts may be necessary in very large spaces or if any repairs or replacements are being done on sensors or on the connection between the display and controller. Crimping tool and jacks used to change any damaged sensor jacks. Replacement sensors can be purchased separately. ATMOX products have a 3-year limited product warranty. Contents: (1) Crimping Tool for RJ11 Jacks (4) Extension Cables (4) Cable Couplers (100) RJ11 Plugs for Stranded Flat Wire
Specifications:
- Kit includes: (1) Crimping Tool for RJ11 Jacks
- (4) Extension Cables with Couplers (25’)
- (100) RJ11 Plug for Stranded Flat Wire
Replacement sensors can be purchased separately.
